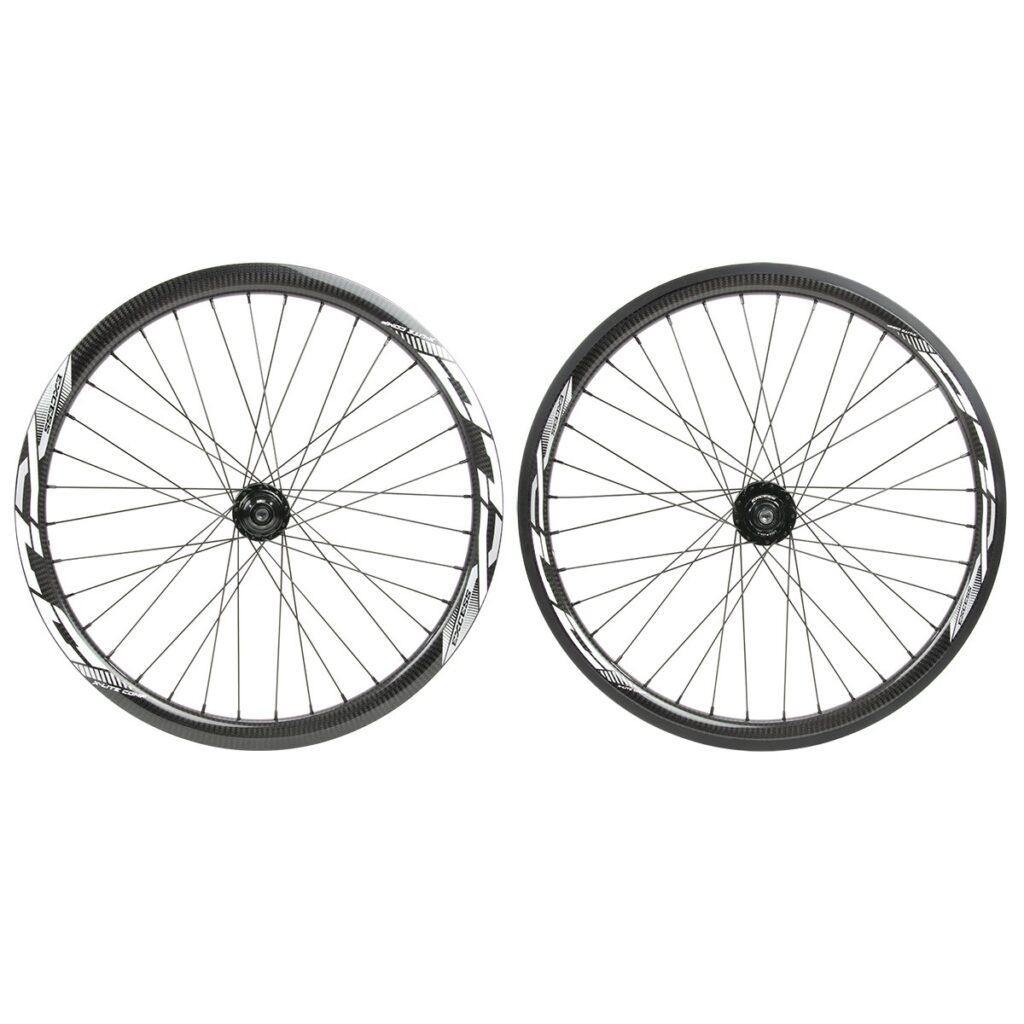

The new XLC-3 507 Carbon Fiber Wheelset is the perfect addition to your high end race machine features a Pro level rear cassette hub that can take the power of a pro rider and keep you out front of the pack!

The XLC-2 Pro Lite/Pro Cruiser 24” Wheelset features our exclusive 3K Carbon Fiber rims that feature 2 different rim profiles front and rear, each with a low profile, and hi-gloss finish.

Also uses a rear Cassette Hub with a 3 pawls system with 5 fin claws, locking into a 120 ratchet cutter ring, giving you that extra torque needed for full power gate starts! The rear hub also offers the option for you to be able to convert it for use with a disc brake! We offer this by allowing you to be able to accept a disc brake via an optional Disc Center Lock adapter! This gives you the best of both worlds. The Wheels are set up out of the box for V Brakes, but you can upgrade to Disc at anytime without getting a new rear hub!

For the Front hub, we also offer a front Axle Conversion kit to change it from the stock 3/8″ to 20mm! The wheels are delivered with a 3/8″ front axle set up, but with the purchase of the optional front 20mm hub conversion kit, you can convert the front hub to 20mm, allowing you to be able to use a 20mm dropout fork!

All the wheels feature white graphics, Hi-Gloss Black Natural Carbon finish, and 2 unique Rim Profiles.

20mm-comp
disc-comp
vbrake-comp2

XLC-3 Carbon Fiber Rims Features:

3K carbon fiber with water stickers and shiny clear coating finish rim
Low Profile Aero
Brakeless Surface Profile on front rim
Brake Track surface Profile on rear rim
Angled Nipples Holes
Laced with 14G Stainless spokes & Brass nipples
Included rim tapes

XLC-3 Pro Front Hub Features:

2 sealed bearings
Alloy axle / Alloy end caps
3/8” bolts with alloy CNC bolts caps
Optional 20mm Conversion axle kit sold separately

XLC-3 Pro Rear Hub Features:

4 sealed bearings
Chromoly axle
3/8” bolts with alloy CNC bolts caps
Alloy driver (3 pawls with 5 fin claws engage into a 120 ratchets outer ring), with Chromoly 1x 1mm, 1x 0.5mm driver spacer and lock ring.
Option to replace the supplied alloy lock ring and install the Center Lock Disc Adapter
Rear Cog and Center Lock Disc adapter not included

XLC-3 CARBON FIBER RIMS SPECIFICATIONS
SIZE : 24″ X 1.50″-1.75″
ETRTO: 507mm
ERD: 466.4mm
Height: 30mm
Internal Rim Width: 24mm
External Rim Width: 30mm
Valve : F/V Presta

RIMS DRILLING:
36 Holes

Spokes Lengths:

Front: 178mm
Rear: 177/175mm

Weights:

FRONT: 960g
REAR: 1036g

CASSETTE BODY SPECIFICATIONS
Chromoly driver : 3 pawls with 5 fin claws engage into a 120 ratchets outer ring

CENTER LOCK DISC ADAPTER OPTION
Center lock disc adapter and disc sold separately
